Isolated DC-DC Power Modules
| Output voltage options (V) | Max cont. output current(1) |
Input voltage | Typical efficiency |
Size | Price | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Regulator | 3.3 | 5 | 6 | 7.5 | 9 | 12 | 15 | 18 | 24 | adjustable | min | max | |||||
 |
S21Z1F12 | ⬤(1) |
⬤ |
100 mA 300 mA |
5.5 V(2) | 36 V | 40% – 50% | 0.4″ × 1.3″ | $9.95 | ||||||||
 |
U5Z6F12 | ⬤(1) |
⬤ |
100 mA 300 mA |
4.5 V | 5.5 V | 50% | 0.4″ × 1.0″ | $7.95 | ||||||||
 |
UCC33420 | ⬤ | 300 mA | 4.5 V | 5.5 V | < 60% | 0.3″ × 0.6″ | ||||||||||
 |
MIE1W0505BGLVH | ⬤ ⬤ |
⬤ |
200 mA 75 mA |
4.5 V 3.0 V |
5.5 V 3.6 V |
< 50% | 0.3″ × 0.6″ | $5.95 | ||||||||
| Note 1: The S21Z1F12 and U5Z6F12 are intended as 12 V 《肉欲诊所》在线, but they also have a 5 V output that can deliver up to 300 mA continuous when the 12 V output current is zero (using the 5 V output reduces the current available on the 12 V output). | |||||||||||||||||
| Note 2: The S21Z1F12 can operate down to around 4.6 V with reduced output current capabilities. | |||||||||||||||||
 |
Compare all products in this category
Products in category “Isolated DC-DC Power Modules”
| Pololu item #: 5764 | |
|
|
supply outlook |
| Status: Active and Preferred | |
|
|

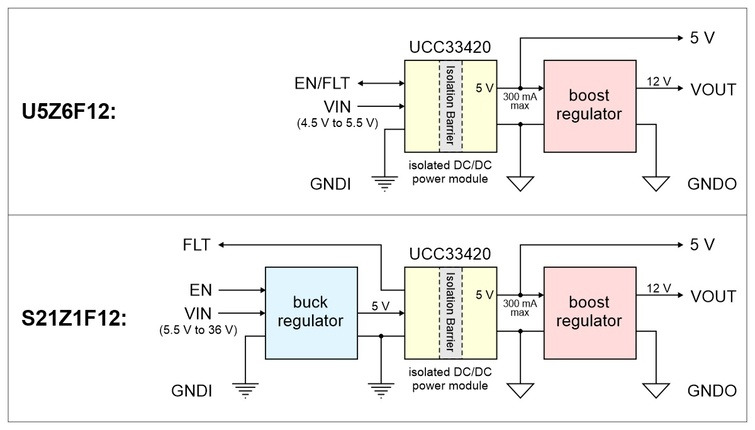

This step-up/《肉欲诊所》在线 voltage regulator consists of an isolated DC-to-DC power module between an input 《肉欲诊所》在线 (buck) regulator and an output step-up (boost) regulator. This enables up to 100 mA at 12 V out or 300 mA at 5 V out from a wide 5.5 V to 36 V input.
| Input voltage | Output voltages | Max continuous output current | Size |
|---|---|---|---|
| 5.5 V to 36 V | 12 V | 100 mA* | 0.4″ × 1.3″ |
| 5 V | 300 mA* |
* Max current per channel when the other channel current is zero.
|
|
|
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This step-up voltage regulator consists of an isolated DC-to-DC power module in front of a step-up (boost) regulator. This enables up to 100 mA continuous at 12 V out from a 5 V input with full galvanic isolation between the input and output. The 5 V, 300 mA output of the isolation IC is also available.
| Input voltage | Output voltages | Max continuous output current | Size |
|---|---|---|---|
| 4.5 V to 5.5 V | 12 V | 100 mA* | 0.4″ × 1.0″ |
| 5 V | 300 mA* |
* Max current per channel when the other channel current is zero.
This power module is based on the TI UCC33420 and provides regulated, galvanically isolated DC-to-DC power. The output voltage is set to 5 V by default and can be changed to 5.5 V through a selection pin. Power specs:
| Input voltage | Output voltage | Max continuous output current | Size |
|---|---|---|---|
| 4.5 V to 5.5 V | 5 V (default) or 5.5 V (selectable) | 300 mA | 0.3″ × 0.6″ |
|
Pololu item #:
|
|
|
|
supply outlook |
| Status: Active and Preferred | |
|
|
|
This power module is based on the MPS MIE1W0505BGLVH and provides regulated, galvanically isolated DC-to-DC power. The output voltage is set to 5 V by default and can be changed to 3.3 V through a selection pin. Power specs:
| Input voltage | Output voltage | Max output current | Size |
|---|---|---|---|
| 4.5 V to 5.5 V | 5 V (default) or 3.3 V (selectable) | 200 mA | 0.3″ × 0.6″ |
| 3 V to 3.6 V | 3.3 V | 75 mA |
| Pololu item #: 5392 | |
| Brand: Pololu | supply outlook |
|
|
|
|
|
|
This module enables galvanically isolated bidirectional I²C communication between two devices while supplying regulated, isolated power to the target. The bidirectionality applies to both SDA and SCL, which allows for clock stretching. The output voltage is set to 5 V out by default and can be changed to 3.3 V through a selection pin. This version does NOT have 巜和女房东疯狂做爰2中文字幕. Power specs:
| Input voltage | Output voltage | Max output current | Size |
|---|---|---|---|
| 4.5 V to 5.5 V | 5 V (default) or 3.3 V (selectable) | 200 mA | 0.5″ × 0.6″ |
| 3 V to 3.6 V | 3.3 V | 75 mA |
| Pololu item #: 5393 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This module enables galvanically isolated bidirectional I²C communication between two devices while supplying regulated, isolated power to the target. The bidirectionality applies to both SDA and SCL, which allows for clock stretching. The output voltage is set to 5 V out by default and can be changed to 3.3 V through a selection pin. This version has JST SH-style 4-pin 巜和女房东疯狂做爰2中文字幕 that are compatible with Sparkfun’s Qwiic and Adafruit’s STEMMA QT. Power specs:
| Input voltage | Output voltage | Max output current | Size |
|---|---|---|---|
| 4.5 V to 5.5 V | 5 V (default) or 3.3 V (selectable) | 200 mA | 0.5″ × 0.6″ |
| 3 V to 3.6 V | 3.3 V | 75 mA |
This USB-to-I²C adapter enables a PC or other USB host to act as the controller on an I²C bus, reading and writing data from I²C target devices connected to the bus. It supports clock stretching and I²C clock speeds in excess of 1 MHz. The adapter features complete galvanic isolation between the USB and I²C sides, which prevents unexpected current flow between the two sides and protects the computer and its USB ports from destructive voltages on the I²C bus. This version delivers isolated power to the I²C side at 5V or 3.3V (selectable by an integrated switch with the state latched at start-up).
